Summit White

Jet Black

EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

REAR AXLE, 3.23 RATIO

RST PREFERRED EQUIPMENT GROUP includes standard equipment

WHEELS, 20" X 9" (50.8 CM X 22.9 CM) PAINTED ALUMINUM with machine face and Grazen Painted pockets

TIRES, 275/60R20SL ALL-TERRAIN, BLACKWALL (Includes (QAQ) spare tire.)

Z71 OFF-ROAD AND PROTECTION PACKAGE includes (Z71) Z71 Off-Road suspension, (JHD) Hill Descent Control, (NZZ) skid plates, (K47) heavy-duty air filter and Z71 hard badge Includes (WPQ) Protection Package and (AAK) All-weather Z71 floor liners, LPO.

Z71 OFF-ROAD PACKAGE includes (Z71) Off-Road suspension, (JHD) Hill Descent Control, (NZZ) skid plates and (K47) heavy-duty air filter Includes Z71 hard badge, (N10) dual exhaust, (RCV) 18" bright silver painted wheels, (XCK) 265/65R18 all-terrain, blackwall tires and (NQH) 2-speed transfer case.

PROTECTION PACKAGE includes (B1J) wheel house liners and (CGN) Chevytec spray-on bedliner

NOT EQUIPPED WITH DYNAMIC FUEL MANAGEMENT, SEE DEALER FOR DETAILS

SHIFTER, ELECTRONIC TRANSMISSION RANGE SELECTOR includes steering column paddle shifters

HILL DESCENT CONTROL

TRANSFER CASE, TWO-SPEED electronic Autotrac with push button control

AIR FILTER, HEAVY-DUTY

TRAILER BRAKE CONTROLLER, INTEGRATED

SKID PLATES

EXHAUST, DUAL WITH POLISHED OUTLETS (STH) Rally Edition and (WGQ) Redline Edition includes Black exhaust tips.)

CHEVYTEC SPRAY-ON BEDLINER, BLACK WITH CHEVROLET LOGO (does not include spray-on liner on tailgate due to Black composite inner panel)

WHEELHOUSE LINERS, REAR Certain vehicles built prior to 3-21-2022 and after 4-7-2022 will include rear wheelhouse liners. Certain vehicles built on 3-21-2022 thru 4-7-2022 will be forced to include (RFZ) Not Equipped with Rear Wheelhouse liners, which removes Rear Wheelhouse liners. See dealer for details or the window label for the features on a specific vehicle.)

LICENSE PLATE KIT, FRONT

TAILGATE, GATE FUNCTION POWER UP/DOWN with power lock and release

CENTER CONSOLE, FLOOR-MOUNTED with cup holders, Wireless Charging, power cord management, hanging file folder capability; includes removable storage tray Includes (EPH) Electronic Transmission Range Selector (console mounted).)

LPO, ALL-WEATHER FLOOR LINERS, 1ST AND 2ND ROWS (includes Z71 logo on front mats),

NOT EQUIPPED WITH STEERING COLUMN LOCK, SEE DEALER FOR DETAILS (Certain vehicles built on or after 4-4-2022 will be forced to include (R7N) Not Equipped with Steering Column Lock, which removes Steering Column Lock.)

WIRELESS CHARGING

USB PORTS, 2, CHARGE/DATA PORTS LOCATED INSIDE CENTER CONSOLE

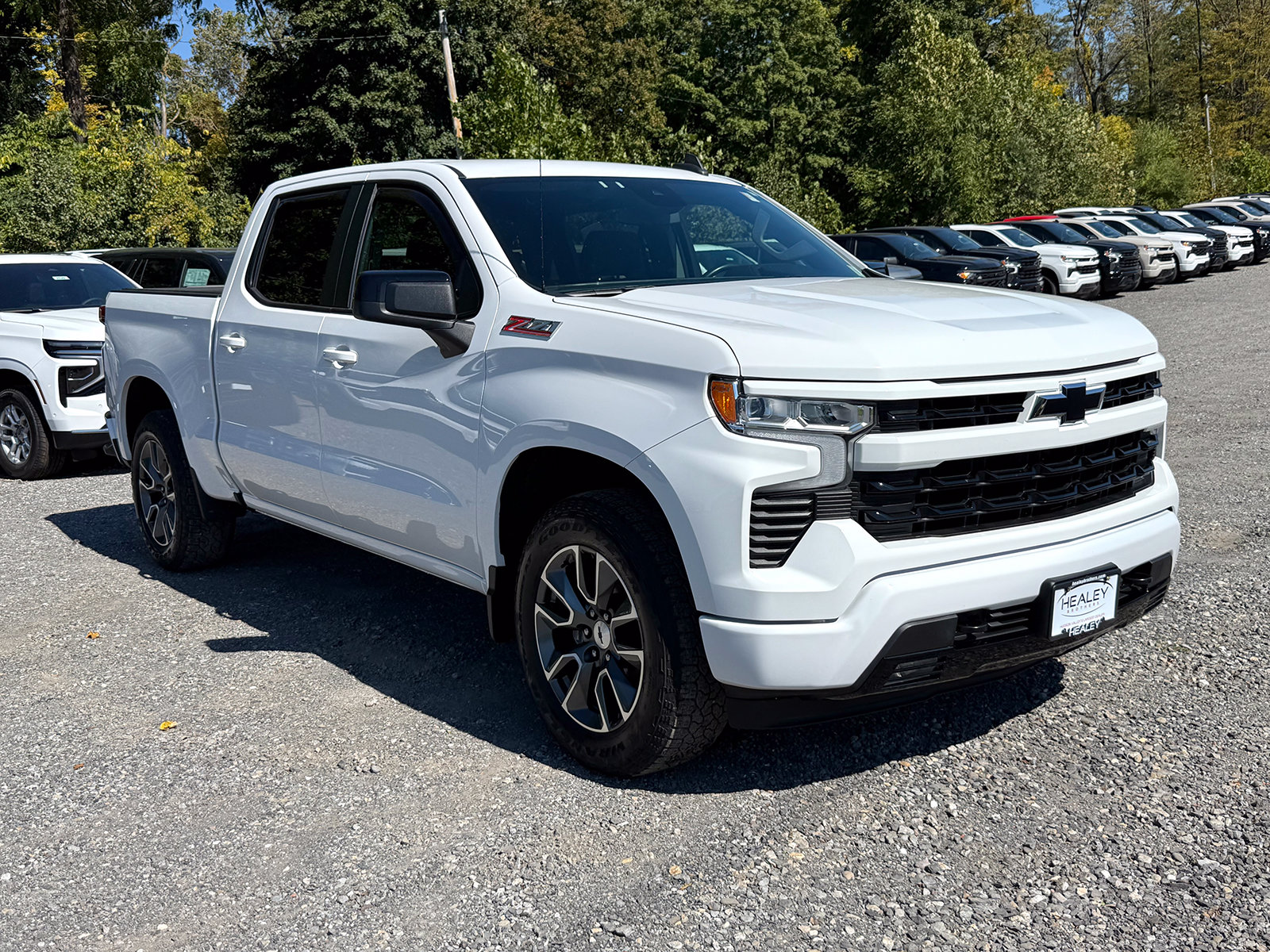

Vehicle Name - Chevrolet Silverado 1500

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Gross Axle Wt Rating - Front (lbs) - - TBD -

Gross Axle Wt Rating - Rear (lbs) - - TBD -

Curb Weight - Front (lbs) - 2845

Curb Weight - Rear (lbs) - 1981

Fuel Economy Est-Combined (MPG) - 16

EPA Fuel Economy Est - City (MPG) - 14

EPA Fuel Economy Est - Hwy (MPG) - 19

Tons/yr of CO2 Emissions @ 15K mi/year - 11

Gross Vehicle Weight Rating Cap (lbs) - 7100

Gross Combined Wt Rating (lbs) - 16800

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 11000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 1100

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 9800

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 2450

Maximum Trailering Capacity (lbs) - 13200

Engine Type - Gas V8

Fuel System - Direct Injection

Engine Order Code - L84

Displacement - 5.3L/325

SAE Net Horsepower @ RPM - 355 @ 5600

SAE Net Torque @ RPM - 383 @ 4100

Trans Order Code - MHS

Trans Type - 10

Trans Description Cont. - Automatic w/Paddle Shifters

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.69

Second Gear Ratio (:1) - 2.98

Third Gear Ratio (:1) - 2.15

Fourth Gear Ratio (:1) - 1.8

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.28

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Ninth Gear Ratio (:1) - 0.69

Tenth Gear Ratio (:1) - 0.63

Reverse Ratio (:1) - 4.86

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - Magna MP3023/4

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - 2.69

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - - TBD -

Frame Type - Box Ladder

Suspension Type - Front - Independent

Suspension Type - Rear - Solid Axle

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - - TBD -

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front - 3.23

Axle Ratio (:1) - Rear - 3.23

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - 1.30

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QAE

Rear Tire Order Code - QAE

Spare Tire Order Code - QAQ

Front Tire Size - 275/60R20SL

Rear Tire Size - 275/60R20SL

Spare Tire Size - 255/80R17SL

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - N/A

Front Wheel Size (in) - 20 x 9

Rear Wheel Size (in) - 20 x 9

Spare Wheel Size (in) - 17 x 8

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 46.9

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.5 x 1.18

Rear Brake Rotor Diam x Thickness (in) - 13.6 x 0.79

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 24

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 43.03

Front Leg Room (in) - 44.53

Front Shoulder Room (in) - 66.02

Front Hip Room (in) - 61.18

Second Head Room (in) - 40.12

Second Leg Room (in) - 43.4

Second Shoulder Room (in) - 65.16

Second Hip Room (in) - 60.24

Wheelbase (in) - 147.43

Length, Overall (in) - 231.88

Width, Max w/o mirrors (in) - 81.24

Height, Overall (in) - 75.51

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - - TBD -

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 8.08

Ground Clearance, Rear (in) - 8.08

Cargo Box Length @ Floor (in) - 69.92

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 71.4

Cargo Box Width @ Wheelhousings (in) - 50.63

Cargo Box (Area) Height (in) - 22.4

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - 62.9

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Silverado

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 5.3

Engine Camshaft - OHV

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - Canada Chevrolet - Truck Truck
